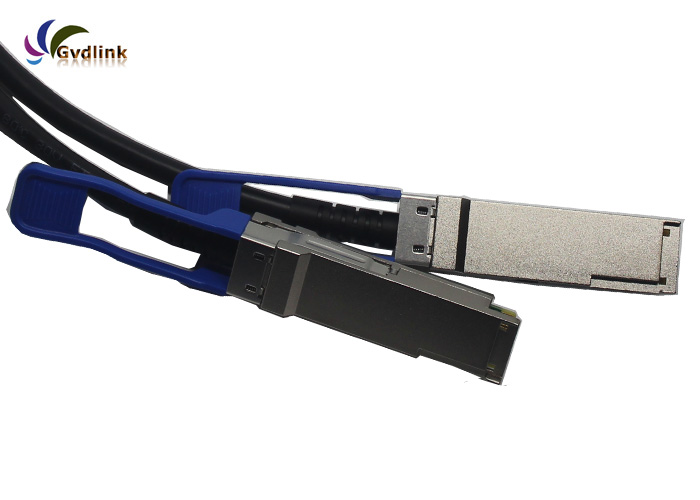

5m 100G QSFP28 Direct Attach Cable

Product Categories

Shenzhen Gaveid communication Technology Co.,Ltd

Contact Now

5m 100G QSFP28 Direct Attach Cable

Name: 5m 100G QSFP28 Direct Attach Cable
Brand: Gvdlink
Price: 1 USD

China 5m 100G QSFP28 Direct Attach Cable wholesale

Brand Name : Gvdlink

Model Number : GVD-QSFP-100G-CU5M

Certification : CE,ROHS,FCC

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, L/C,Paypal

Supply Ability : 3500pcs per week

Delivery Time : 1-5 working days

Packaging Details : Standard neutral or brand packing

Product name : Direct Attach Cable

Type : QSFP28

Data Rate : 100Gb/s

Length : 5m

Connector : QSFP28 100G toQSFP28 100G

Wire AWG : 26 AWG or 28 AWG

Operating tempreature : -20~70 C

Warranty : 3 years

Contact Now

QSFP-100G-CU5M Compatible 100G QSFP28 Passive Direct Attach Copper Twinax Cable 5m

Description

Gvdlink QSFP to QSFP copper direct-attach 100GBASE-CR4 cables are suitable for very short links and offer a cost-effective way to establish a 100-Gigabit link between QSFP-100G ports of switches within racks and across adjacent racks. Gvdlink currently offers passive copper cables in lengths can be 1 , 2 , 3 and 5 meters.

Features

Functionally identical to QSFP-100G-CU5M
Connector 1x QSFP28 100Gbps Rated Connector
4 independent full-duplex channels
Compliant with SFF-8665/SFF-8679
Compliant with IEEE 802.3bj
Temperature Range: 0~ 70 °C
Single 3.3V power supply
ROHS Compatible

Our QSFP28 100G cables product series

Model	Specification
QSFP-100G-CU1M	100GBASE-CR4 Passive Copper Cable 1M
QSFP-100G-CU2M	100GBASE-CR4 Passive Copper Cable 2M
QSFP-100G-CU3M	100GBASE-CR4 Passive Copper Cable 3M
QSFP-100G-CU5M	100GBASE-CR4 Passive Copper Cable 5M
QSFP-4SFP25G-CU (1M , 2M , 3M , 5M)	100GBASE QSFP to 4xSFP25G Passive Copper Splitter Cables
QSFP-100G-AOC (1M , 2M , 3M , 5M , 7M , 10M , 15M, 20M , 25M , 30M)	100GBASE QSFP Active Optical Cables

Advantages

100%tested
High Quality with ISO9001 , CE , TUV , FCC and RoHS certificates
Fully product line
3 year Warranty
very fast delivery

Applications

100G Ethernet (100GBASE-CR4)
Intra-Rack System , Top of Rack (ToR) , Middle of Rack (MoR)
Data centers
Switch , Storage , Server , NIC

Our product line show

5m 100G QSFP28 Direct Attach Cable

Product Tags:

QSFP28 Direct Attach Cable

100G Direct Attach Cable

QSFP-100G-CU5M Direct Attach Cable

5m 100G QSFP28 Direct Attach Cable Images
